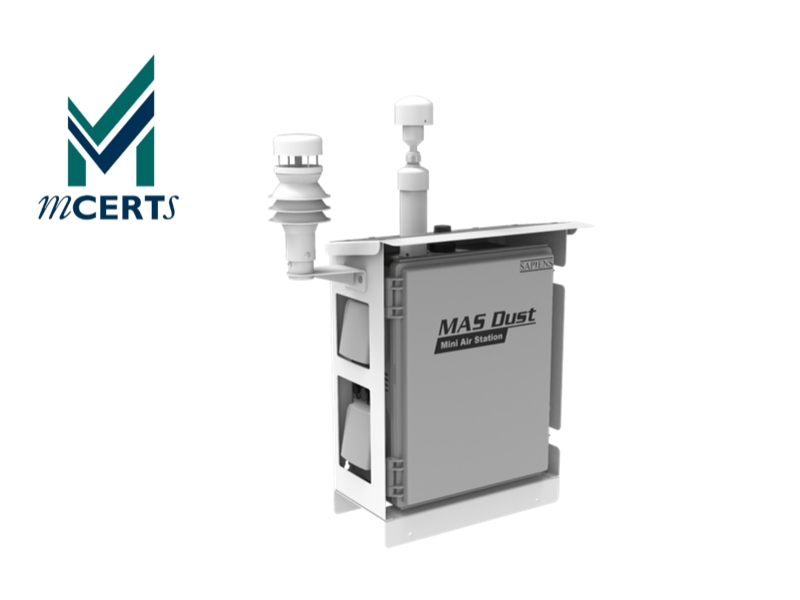

MAS Dust

MAS Dust is engineered for high-performance, long-term outdoor particulate matter monitoring, featuring integrated autonomous data quality control. Equipped with an advanced particle counter based on light scattering technology (optical approach), it simultaneously measures mass concentrations of PM₁, PM₂.₅ (FSP), PM₁₀ (RSP), and TSP.

MCERTS certified-accurate particulate matter monitoring data

Continuous and simultaneous measurements of PM₁, PM₂.₅ (FSP), PM₁₀ (RSP), and TSP.

Environmental Monitoring and Audit (EM&A) compliance for construction dust monitoring and Transfer Standard (TS) applications

Product Detail

MCERTS Certified, Fully Compliant, Monitor All Particulates – PM₁ to TSP

The system ensures reliable particulate monitoring through three key innovations: 1) an intelligent heated inlet with adjustable humidity thresholds to prevent condensation; 2) autozero calibration eliminating photometer drift; 3) sheath flow stabilization for consistent long-term particle counting.

Certification

As an ISO 9001 and ISO 14001 certified company, we are committed to technological excellence and sustainability.

PM₁ PM₂.₅ PM₁₀ TSP Relative Humidity Temperature Pressure Wind Direction Wind Speed

Features and advantages

EM&A Compliance

Environmental Monitoring and Audit (EM&A) compliance for construction dust monitoring and Transfer Standard (TS) applications

Waterproof Design

IP65 waterproof design, suitable for various outdoor environments, modular for easy maintenance.

Auto-Zero Function

Optional auto-zero module for automatic correction of sensor drift errors.

Humidity Correction

Built-in high-performance sensors ensure accurate particle concentration measurements.

Data Transmission

4G network data transmission, cloud platform supports real-time monitoring and remote calibration.

Cloud Analysis

Cloud storage and intelligent platform for easy access and in-depth data analysis.

Remote calibration

The Sapiens SEIN platform offers a calibration function, which is a powerful and unique tool for quality control and assurance

Extended Battery Life

External battery pack extends outdoor operation time up to two weeks.

Specifications

Dimension

45cm ×35cm ×20 cm (H x W x D)

Weight

14kg

Environmental Operating Range

Temperature: -10-40°C; Humidity: 5-90 %; Pressure: 80kPa~120kPa

Installation Options

Tripod / Wall mount / Cross arm

Ingress Protection

IP65 with optional metal shield for UV protection and sun exposure

Power Input

Standard: 220V AC, 50Hz or 15 ~ 22V External DC Input
Optional: External Smart Battery Packs, Solar Power Panel

Power Consumption

≤ 25W (without an external power supply)

Data Management

Sapiens Environment IoT Network (SEIN) Platform for remote data browsing, downloading, system condition checking and control, and data management

Data Communication

4G module communication for data transmission to cloud platform;
RS485/232 communication for Sapiens Console software with data streaming and system configuration

Data Storage

Standard 16G SD card for data storage

Gas Sampling

PM Sampling

Active sampling with long life pump and heated inlet

Sampling Rate

1 minute

Averaging Interval

1 minute, 1 hour, 1 day

Quality Control System

Integrated smart heating inlet with user set threshold of humidity for PM modules;
Autozero function for PM photometer module to correct for long term drift;
Pair Differential Filter technology for temperature and humidity impact correction on gas sensor signals

Download Spec Sheet

Connectivity

Seamless IoT Integration

Our solutions enable effortless connectivity across diverse devices and platforms, unifying sensors, systems, and applications into a cohesive smart ecosystem SEIN platform. With cross-protocol compatibility and real-time data synchronization, we empower businesses to streamline operations, enhance decision-making, and scale innovations securely—all through a single, intuitive interface.

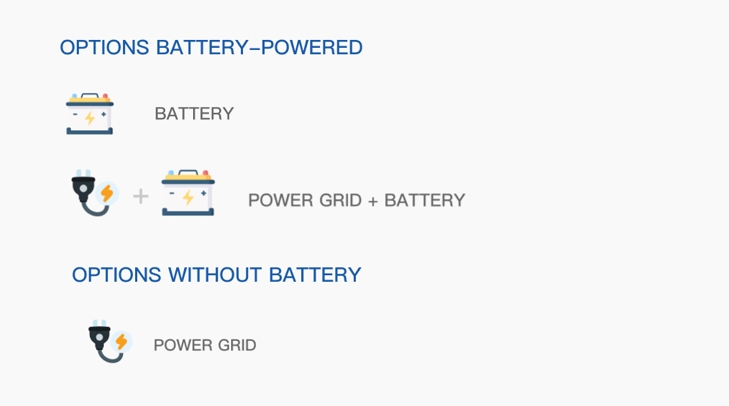

Power Packs

The MAS Dust has different power options, as per follows:

Mains Supply
External Smart Battery
Mains Supply + External Smart Battery

Case Studies

Explore all case

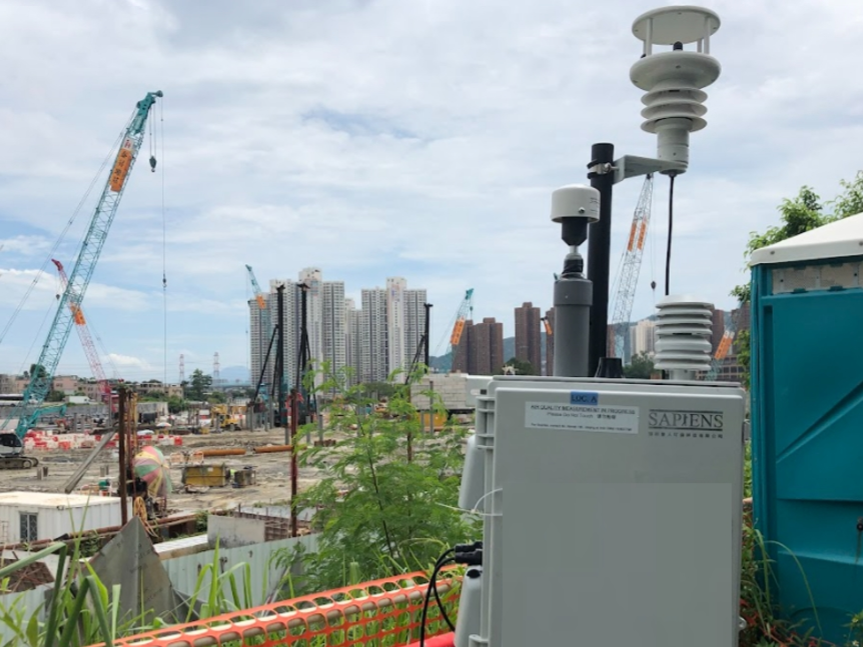

Air, Vibration, Noise and CCTV Monitoring at Construction Sites for Property Developers

Sector：Construction

Location：Kadoorie Hill, Hong Kong

The number of property development projects is increasing with time as the population grows. However, almost all real estate buildings would bring excessive noise and air pollution to the community during construction. Those environmental risks would cause fines, lawsuits or neighborhood opposition if mishandled. To limit potential problems, Sapiens provided a total solution for Air Quality, Vibration, Noise, and CCTV monitoring as an integrated EMA practice in a property development project in Hong Kong. The highly integrated system of MAS with the rich accessory list for environment monit

See More Detail

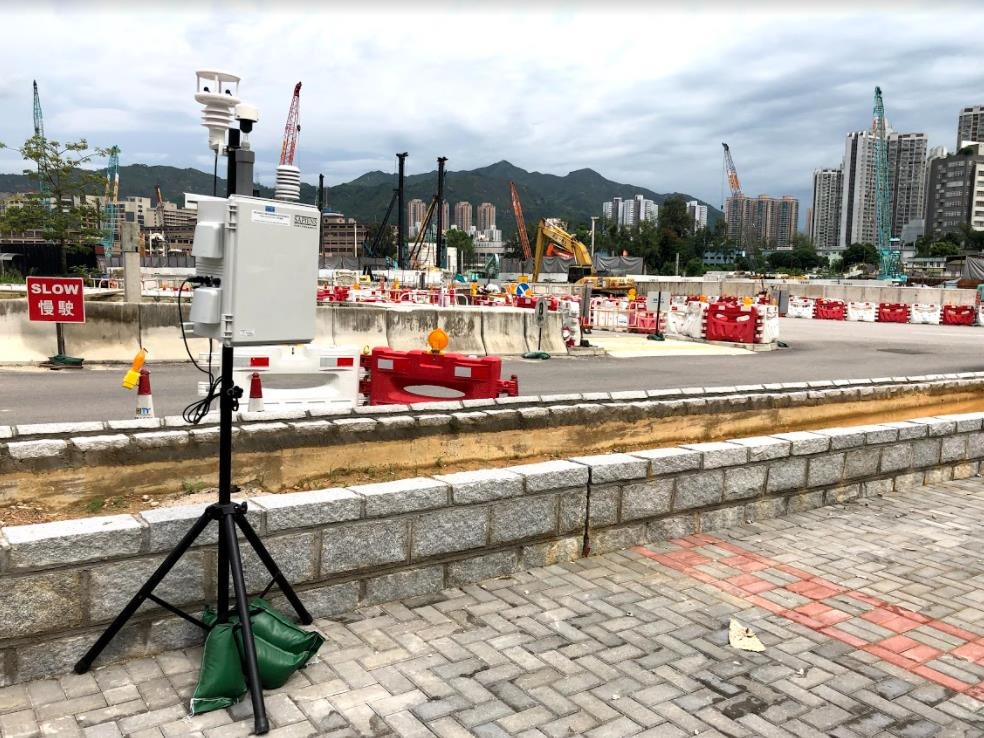

Measurement of Particulate Matter at Construction Site at Northern District

Sector：Construction

Location：Northern District, Hong Kong

The dust pollution brought by construction activity not only deteriorates the environment but also causes respiratory health issues to the workers and surrounding citizens. According to the Hong Kong Air Pollution Control (Construction Dust) Regulation, the constructor have to adopted dust prevention action to minimize the dust emitted. To effectively monitor dust levels and ensure the regulation compliance of the constructors, The Hong Kong Environmental Protection Department (EPD) has utilized advanced technology, specifically the Sapiens MAS-Dust sensor. Sapiens MAS-Dust sensors are str

See More Detail

Effectiveness in Evaluating Roadside Air Quality for Milan Government

Sector：Traffic and Marine Emission

Location：Milan, Italy

The traffic emissions are generally monitored by the traditional fixed reference stations. However, those stations are not only expensive to operate, but also unable to monitor emission sources at a close range. This limited their effectiveness in studying local pollution problems. To better understand the traffic emissions in Milan, Italy, the city's environmental agency AMAT (Agenzia Mobilità Ambiente e Territorio) deployed three Sapiens MAS-AF300 in the city to evaluate the advanced air quality sensors compact station’s capability to detect exposure to vehicular traffic-related emission

See More Detail

Dust & Noise Monitoring and Early Warning System in Shenzhen

Sector：Construction

Location：Shenzhen, China

Recognizing the need to mitigate construction noise impacts, the Shenzhen Municipal Ecological Environment Bureau-Luohu Management Bureau carried out construction site noise monitoring work at a construction site in Luohu District. This innovative system automatically alerts site managers to noise level violations, empowering rapid mitigation to uphold environmental regulations and protect community wellbeing- a testament to sustainable urban development.

See More Detail
