MAS-EMS

My Account

MAS EMS

The MAS EMS is a compact environmental monitoring system providing air quality, noise and meteorological data. It is invaluable for environmental consultants, urban planners, and health professionals to make informed decisions and ensure safety and compliance.

MCERTS certified-accurate particulate matter monitoring data

Highly integrated dust, noise, meteorological and other environmental factor

Equipped with email alert for pollutants’ exceedance

Product Detail

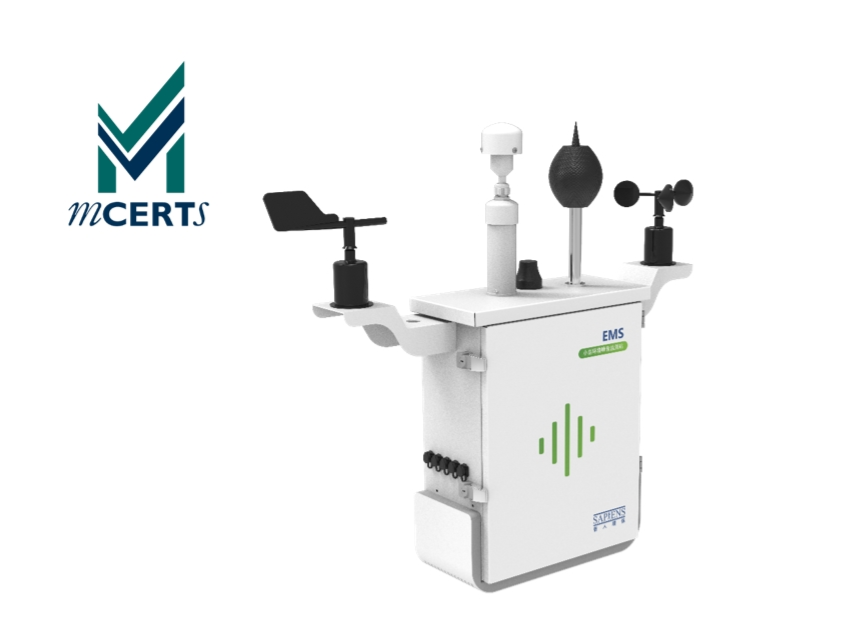

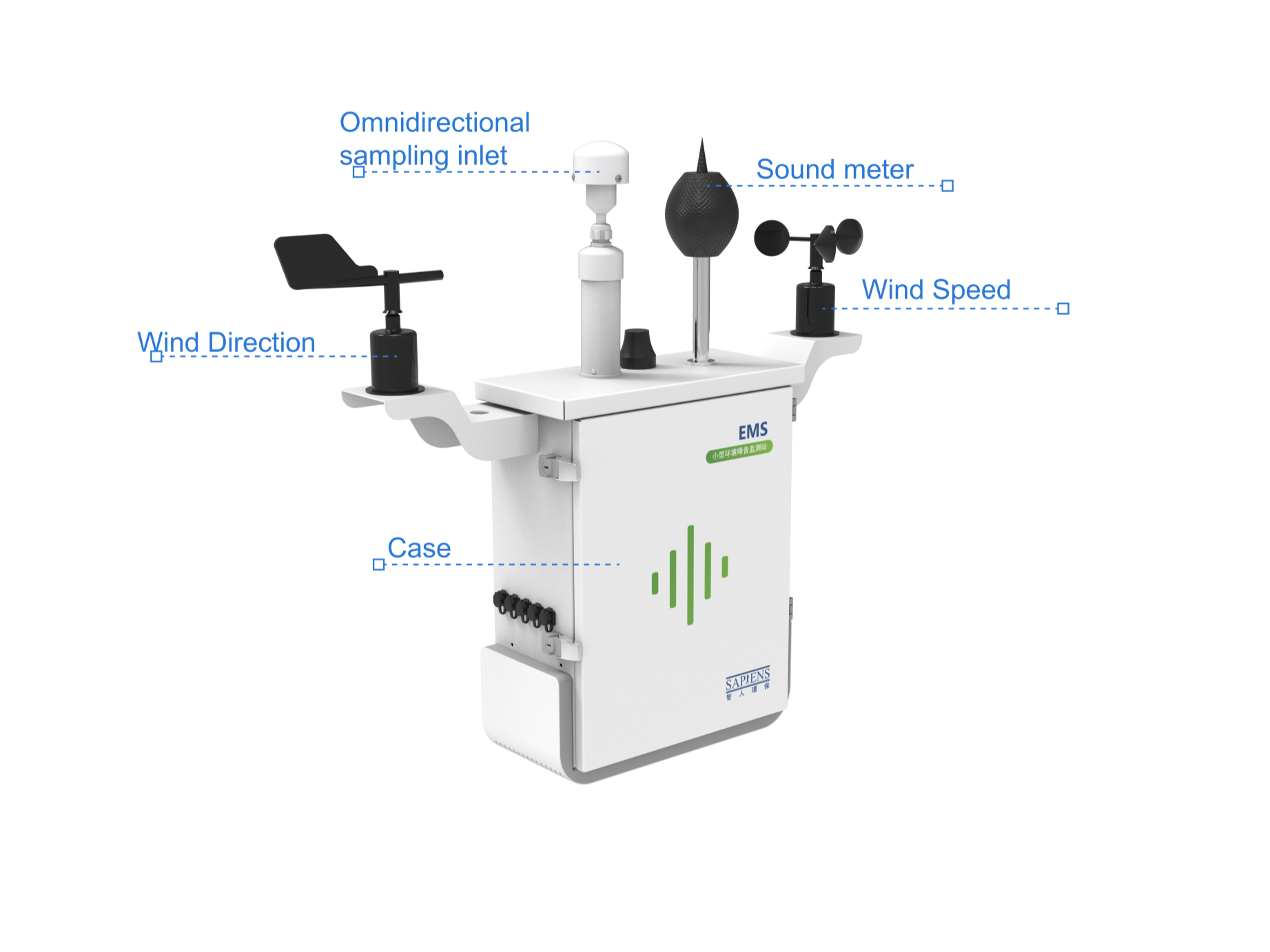

All in One Solution for Construction Site Air Quality and Noise Monitoring

The MAS EMS is an invaluable tool for environmental consultants, construction site managers, urban planners, and health professionals, helping them make informed decisions and ensure safety and compliance.

Certification

As an ISO 9001 and ISO 14001 certified company, we are committed to technological excellence and sustainability.

PM₁ PM₂.₅ PM₁₀ TSP Noise Relative Humidity Temperature Pressure Wind Direction Wind Speed

Features and advantages

Flexible Customization

Supports customization of multiple gas measurements with fast response and ppb-level accuracy.

Waterproof Design

IP65 waterproof design, suitable for various outdoor environments, modular for easy maintenance.

Auto-Zero Function

Optional auto-zero module for automatic correction of sensor drift errors.

Humidity Correction

Built-in high-performance sensors ensure accurate particle concentration measurements.

Data Transmission

4G network data transmission, cloud platform supports real-time monitoring and remote calibration.

Cloud Analysis

Cloud storage and intelligent platform for easy access and in-depth data analysis.

Remote Calibration

The Sapiens SEIN platform offers a calibration function, which is a powerful and unique tool for quality control and assurance

Extended Battery Life

External battery pack extends outdoor operation time up to two weeks.

Specifications

Dimension

940 (L) x 200 (W) x 800 mm (H)
(Dust monitor + Noise monitor + Weather station)

Weight

17.5 kg
(Dust monitor + Noise monitor + Weather station)

Environmental Operating Range

Temperature: -10-40°C; Humidity: 5-90 %; Pressure: 80kPa~120kPa

Installation Options

Tripod / Wall mount / Cross arm

Ingress Protection

IP65 with optional metal shield for UV protection and sun exposure

Power Input

Standard: 220V AC, 50Hz or 15 ~ 22V External DC Input
Optional: External Smart Battery Packs, Solar Power Panel

Power Consumption

≤ 25W (without an external power supply)

Data Management

Sapiens Environment IoT Network (SEIN) Platform

Data Communication

4G module communication for data transmission to cloud platform;
RS485/232 communication for Sapiens Console software with data streaming and system configuration

Data Storage

Standard 16G SD card for data storage

Noise Monitor Range

28～133 dB(A) (1 kHz)

PM Sampling

Active sampling with long life pump and heated inlet

Sampling Rate

1 minute

Averaging Interval

1 minute, 1 hour, 1 day

Quality Control System

Integrated smart heating inlet with user set threshold of humidity for PM modules;
Autozero function for PM photometer module to correct for long term drift;

Download Spec Sheet

Connectivity

Seamless IoT Integration

Our solutions enable effortless connectivity across diverse devices and platforms, unifying sensors, systems, and applications into a cohesive smart ecosystem SEIN platform. With cross-protocol compatibility and real-time data synchronization, we empower businesses to streamline operations, enhance decision-making, and scale innovations securely—all through a single, intuitive interface.

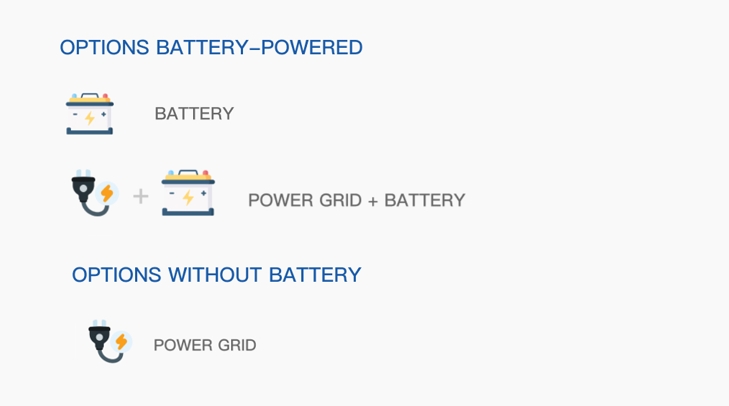

Power Packs

The MAS EMS has different power options, as per follows:

Mains Supply
External Smart Battery
Mains Supply + External Smart Battery

Case Studies

Explore all case

Air, Vibration, Noise and CCTV Monitoring at Construction Sites for Property Developers

Sector：Construction

Location：Kadoorie Hill, Hong Kong

The number of property development projects is increasing with time as the population grows. However, almost all real estate buildings would bring excessive noise and air pollution to the community during construction. Those environmental risks would cause fines, lawsuits or neighborhood opposition if mishandled. To limit potential problems, Sapiens provided a total solution for Air Quality, Vibration, Noise, and CCTV monitoring as an integrated EMA practice in a property development project in Hong Kong. The highly integrated system of MAS with the rich accessory list for environment monit

See More Detail

Measurement of Particulate Matter at Construction Site at Northern District

Sector：Construction

Location：Northern District, Hong Kong

The dust pollution brought by construction activity not only deteriorates the environment but also causes respiratory health issues to the workers and surrounding citizens. According to the Hong Kong Air Pollution Control (Construction Dust) Regulation, the constructor have to adopted dust prevention action to minimize the dust emitted. To effectively monitor dust levels and ensure the regulation compliance of the constructors, The Hong Kong Environmental Protection Department (EPD) has utilized advanced technology, specifically the Sapiens MAS-Dust sensor. Sapiens MAS-Dust sensors are str

See More Detail

Dust & Noise Monitoring and Early Warning System in Shenzhen

Sector：Construction

Location：Shenzhen, China

Recognizing the need to mitigate construction noise impacts, the Shenzhen Municipal Ecological Environment Bureau-Luohu Management Bureau carried out construction site noise monitoring work at a construction site in Luohu District. This innovative system automatically alerts site managers to noise level violations, empowering rapid mitigation to uphold environmental regulations and protect community wellbeing- a testament to sustainable urban development.

See More Detail
