MAS-AF300

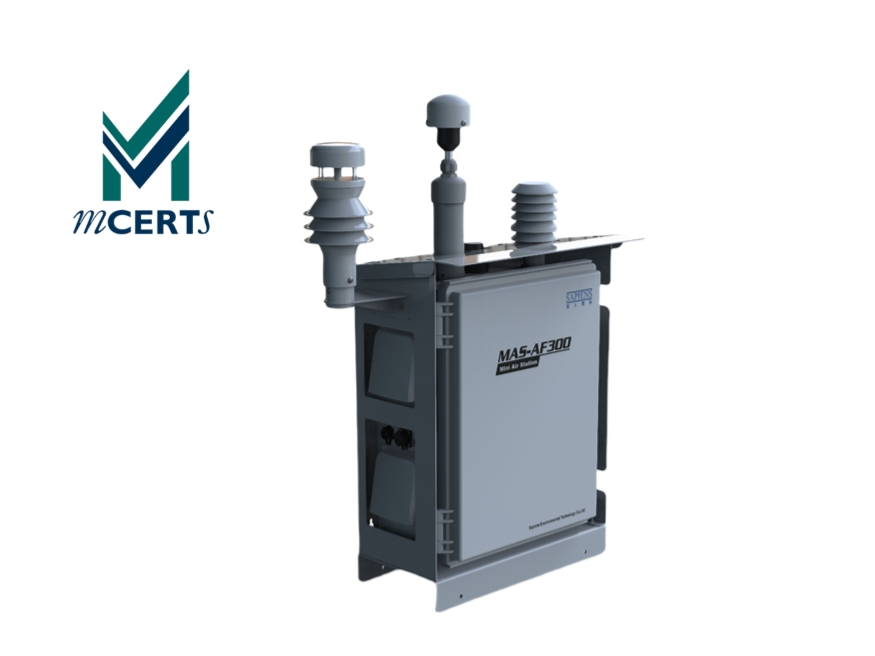

MAS-AF300 is the flagship model of Sapiens Mini Air Station (MAS) series products for high performance and long-term outdoor air quality monitoring with integrated autonomous data quality control capabilities. The product can measure criteria air pollutants including particulate matters (PM₁, PM₂.₅, PM₁₀, TSP), nitrogen dioxide (NO₂), ozone (O₃), carbon monoxide (CO), sulfur dioxide (SO₂) and nitric oxide (NO) with near reference data quality under all weather conditions.

MCERTS certified-accurate particulate matter monitoring data

PCT patented Pair Differential Filter (PDF) technology for gas sensors to auto track the virtual baseline of sensor signals to offer unmatched performance at ppb level measurements

Continuous and simultaneous measurements of particulate matters and up to 6 gases

Product Detail

All in one solution for high performance and long-term ambient criteria air pollutants monitoring

The intended applications are complementary air quality monitoring with high data performance target needs and near reference data quality requirements for government agencies, environmental consultancies, air quality researchers and industrial sectors.

Certification

As an ISO 9001 and ISO 14001 certified company, we are committed to technological excellence and sustainability.

PM₁ PM₂.₅ PM₁₀ TSP NO₂ O₃ CO SO₂ NO CO₂ Black Carbon Relative Humidity Temperature Pressure Wind Direction Wind Speed

Features and advantages

Waterproof Design

IP65 waterproof design, suitable for various outdoor environments, modular for easy maintenance.

Dynamic Baseline

Proprietary technology, real-time baseline tracking, eliminates temperature and humidity effects.

Humidity Correction

Built-in high-performance sensors ensure accurate particle concentration measurements.

Auto-Zero Function

Optional auto-zero module for automatic correction of sensor drift errors.

Data Transmission

4G network data transmission, cloud platform supports real-time monitoring and remote calibration.

Cloud Analysis

Cloud storage and intelligent platform for easy access and in-depth data analysis.

Remote calibration

The Sapiens SEIN platform offers a calibration function, which is a powerful and unique tool for quality control and assurance

Extended Battery Life

External battery pack extends outdoor operation time up to two weeks.

Specifications

Dimension

45cm ×35cm ×20 cm (H x W x D)

Weight

18kg

Environmental Operating Range

Temperature: -10-40°C; Humidity: 5-90 %; Pressure: 80kPa~120kPa

Installation Options

Tripod / Wall mount / Cross arm

Ingress Protection

IP65 with optional metal shield for UV protection and sun exposure

Power Input

Standard : 220V AC, 50Hz or 15 ~ 22V External DC Input
Optional: External Smart Battery Packs, Solar Power Panel

Power Consumption

≤ 25W (without an external power supply)

Data Management

Sapiens Environment IoT Network (SEIN) Platform for remote data browsing, downloading, system condition checking and control, and data management

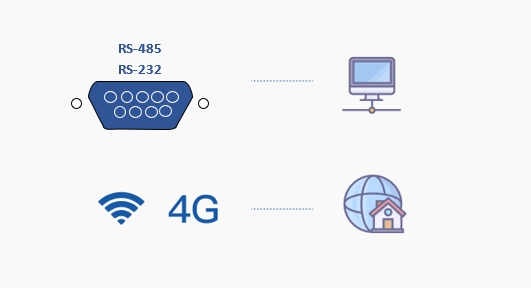

Data Transmission

4G module communication for data transmission to cloud platform;
RS485/232 communication for Sapiens Console software with data streaming and system configuration

Data Storage

Standard 16G SD card for data storage

Gas Sampling

Active sampling with long life pump

PM Sampling

Active sampling with long life pump and heated inleat

Sampling Rate

1 minute

Averaging Interval

1 minute, 1hour, 1 day

Quality Control System

Humidity correction for PM measurement with proprietary algorithm
Pair Differential Filter technology for temperature and humidity impact correction on gas sensor signals
Auto zero functions for SO2, NO, NO2, O3 to correct for sensor drifting over long term operation

Download Spec Sheet

Connectivity

Seamless IoT Integration

Our solutions enable effortless connectivity across diverse devices and platforms, unifying sensors, systems, and applications into a cohesive smart ecosystem SEIN platform. With cross-protocol compatibility and real-time data synchronization, we empower businesses to streamline operations, enhance decision-making, and scale innovations securely—all through a single, intuitive interface.

Power Packs

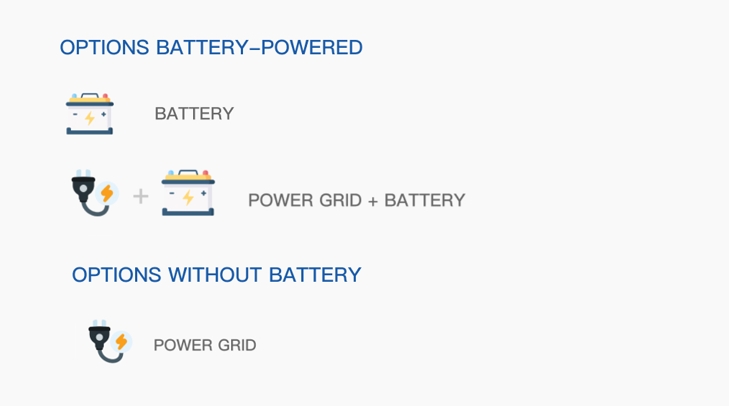

The MAS AF300 has different power options, as per follows:

Mains Supply
External Smart Battery
Mains Supply + External Smart Battery

Case Studies

Explore all case

Incident Response at Central-Wan Chai Bypass Tunnel with Comprehensive Air Quality Monitoring in Hong Kong

Sector：Tunnel, Parking and Transportation Hubs

Location：Central, Wan Chai, Hong Kong

In response to a ventilation system malfunction at Tunnel East Ventilation Building in Hong Kong, Sapiens rapidly deployed multiple autonomous MAD-AF300 monitoring stations to provide real-time air quality data focused on oxides of nitrogen and PM for the tunnel and surrounding areas. This monitoring data supplemented the Highway Department’s investigation, helping to assess the environmental impact and formulate emergency response solutions.

See More Detail

Measurement of Particulate Matter at Construction Site at Northern District

Sector：Construction

Location：Northern District, Hong Kong

The dust pollution brought by construction activity not only deteriorates the environment but also causes respiratory health issues to the workers and surrounding citizens. According to the Hong Kong Air Pollution Control (Construction Dust) Regulation, the constructor have to adopted dust prevention action to minimize the dust emitted. To effectively monitor dust levels and ensure the regulation compliance of the constructors, The Hong Kong Environmental Protection Department (EPD) has utilized advanced technology, specifically the Sapiens MAS-Dust sensor. Sapiens MAS-Dust sensors are str

See More Detail

Effectiveness in Evaluating Roadside Air Quality for Milan Government

Sector：Traffic and Marine Emission

Location：Milan, Italy

The traffic emissions are generally monitored by the traditional fixed reference stations. However, those stations are not only expensive to operate, but also unable to monitor emission sources at a close range. This limited their effectiveness in studying local pollution problems. To better understand the traffic emissions in Milan, Italy, the city's environmental agency AMAT (Agenzia Mobilità Ambiente e Territorio) deployed three Sapiens MAS-AF300 in the city to evaluate the advanced air quality sensors compact station’s capability to detect exposure to vehicular traffic-related emission

See More Detail

Safeguard Cultural Treasures The Last Supper

Sector：Heritage and Museum

Location：Milan, Italy

The microenvironment within a museum plays a crucial role in both visitor and staff health, as well as in the preservation of its collection. Air pollution can irreversibly damage and degrade historic buildings and ancient landmarks. To better protect Leonardo da Vinci's famous painting, ‘The Last Supper’ from continuous fading, Sapiens has installed 20 indoor air quality (IAQ) monitors in the church in Milan, Italy, where the mural is housed. This setup provides comprehensive data on indoor air pollutants.

See More Detail

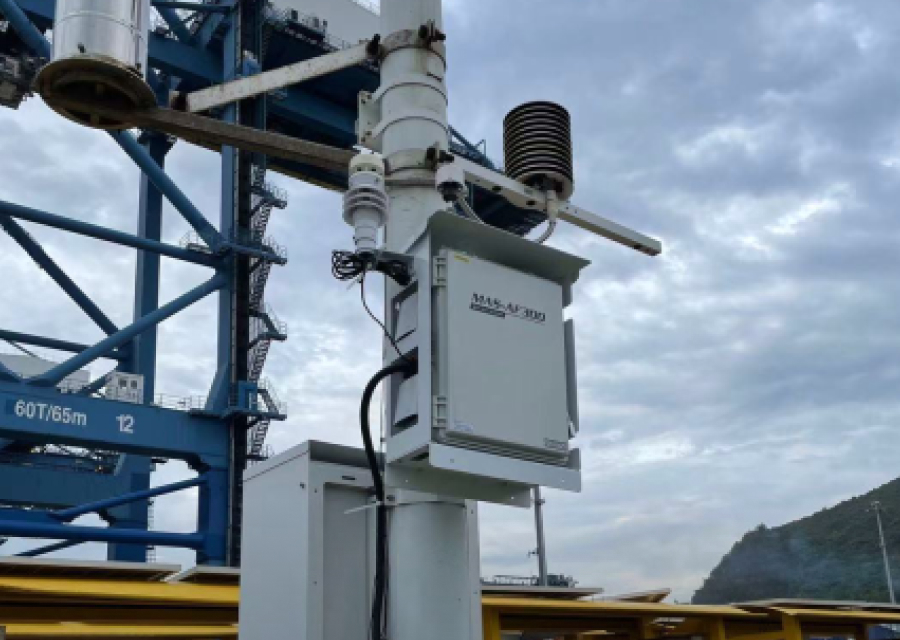

Shenzhen Yantian Port Long-term Emission Monitoring

Sector：Traffic and Marine Emission

Location：Shenzhen, China

The Pearl River Delta (PRD) stands as one of the three biggest port clusters in China, playing a vital role in the nation’s trade and transportation efficiency. However, this thriving development comes at a cost, as the shipping activities generate substantial emissions of greenhouse gases and pollutants, including CO2 and SO2. These emissions not only pose health risks to residents of coastal cities but also exacerbate air quality issues in the surrounding areas.

See More Detail

Dust & Noise Monitoring and Early Warning System in Shenzhen

Sector：Construction

Location：Shenzhen, China

Recognizing the need to mitigate construction noise impacts, the Shenzhen Municipal Ecological Environment Bureau-Luohu Management Bureau carried out construction site noise monitoring work at a construction site in Luohu District. This innovative system automatically alerts site managers to noise level violations, empowering rapid mitigation to uphold environmental regulations and protect community wellbeing- a testament to sustainable urban development.

See More Detail

Supports Air Quality Monitoring at Hong Kong’s Eco Park

Sector：Industrial Emission Monitoring

Location：Eco Park, Hong Kong

The Eco Park operated by Hong Kong’s Environmental Protection Department (EPD), is the city's first facility dedicated to the recycling industry. To assist the EPD’s efforts, Sapiens has collaborated to deploy 10 of our compact air monitoring stations MAS-AF300, and wind sensors across the park grounds. These Sapiens solutions provide comprehensive, real-time data for PM2.5, PM10, NO2, O3, and CO on air quality within the park and surrounding areas. This valuable information helps the better understanding of the local environment and develop accurate air quality models for the region.

See More Detail

Tethered Balloon Deployment of Sapiens Air Sensors for Planetary Boundary Layer Research at High Altitude

Sector：Ambient and community

Location：Shanghai, China

New particle formation (NPF) is a significant source of atmospheric aerosols, playing a crucial role in influencing global climate. The nucleation and subsequent growth processes involved in NPF have sparked considerable research interest. To advance the study of NPF in China, researchers employed the high-performance MAS series to measure air quality at elevations exceeding 1000 meters. This investigation focused on the vertical profiles of key pollutants and their formation mechanisms, providing valuable insights into atmospheric dynamics.

See More Detail
