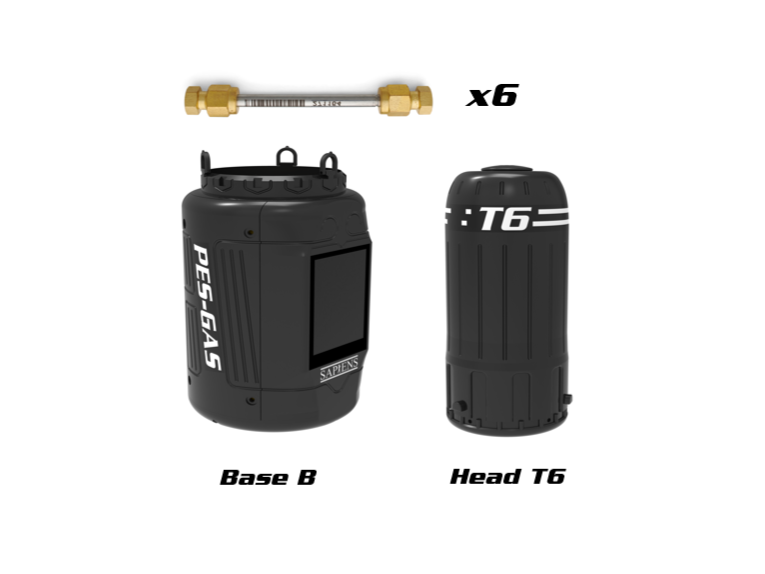

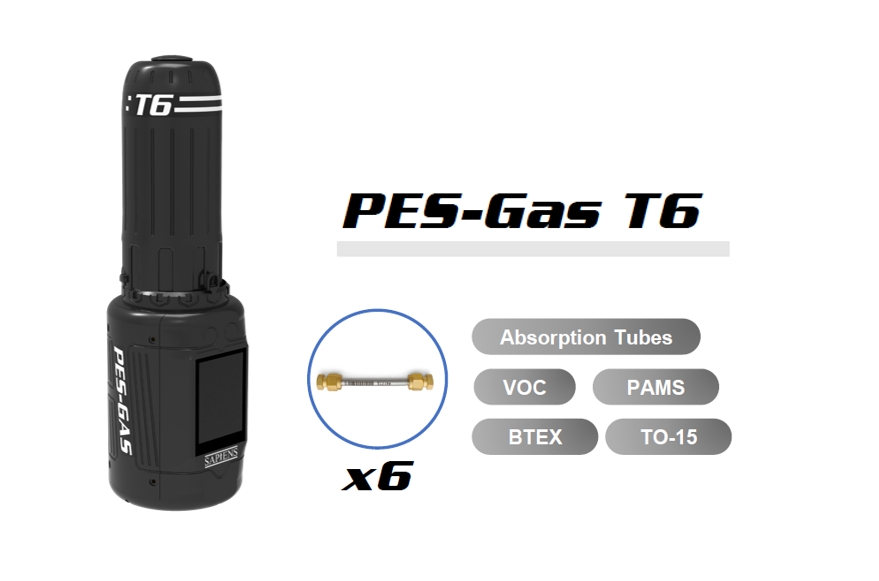

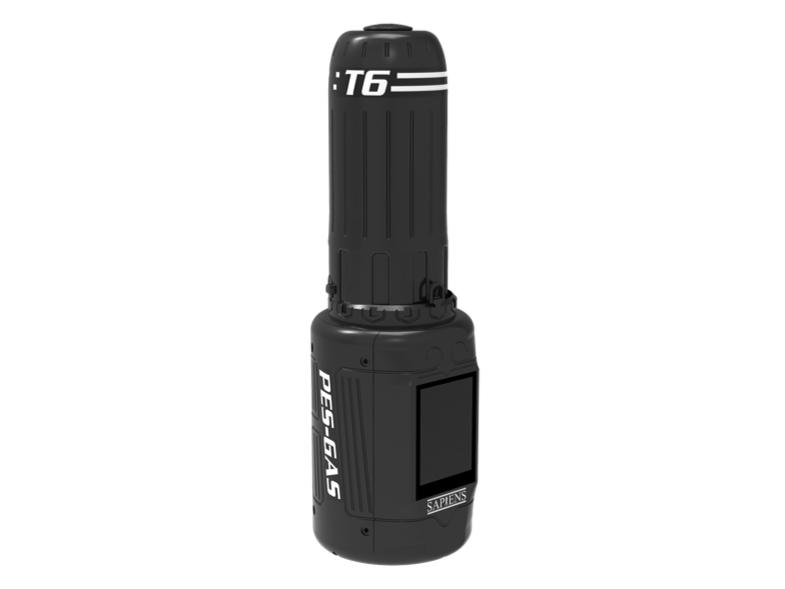

PES-Gas T6

The PES-Gas T6 gas sampler employs traditional chemical absorption impingers as independent sampling media across its six channels, with each channel allowing for customizable sampling duration and interval cycles. An precise flow control system ensures accurate air volume measurement, providing a reliable data foundation for pollutant concentration calculations. This unit is capable of collecting samples with hourly time resolution, supporting the offline analysis of various volatile organic compounds (VOCs) and thereby providing technical support for high-precision pollutant source apportion

High time resolution: High time resolution of integrated sampling from 1h to 24 for each channel.

Applicable laboratory chemical analysis techniques for filters, filter cartridges, and sampling tubes

Independent sampling channels: Six independent channels for user programmed sequential sampling

Product Detail

High-time Resolution Portable Air Sampler for Outdoor, Indoor, Personal Exposure and Microenvironment monitoring.

Our commitment to advanced air quality assessment tools empowers researchers to delve deeper into the complexities of air pollution. With the PES series, you're equipped to capture high-resolution data that not only enhances your understanding of air quality but also drives impactful environmental and health science research. Experience the power of precise sampling and transformative insights with every use.

Certification

As an ISO 9001 and ISO 14001 certified company, we are committed to technological excellence and sustainability.

Absorption Tube VOC PAMS BTEX TO-15

Features and advantages

Ultra-Compact

Compact and lightweight, suitable for various installation methods, flexible and convenient.

High-resolution

High time resolution of integrated sampling from 1h to 24 for each channel.

Visual Display

Display screen for real-time sampling status visualization.

Multiple Samples

Six independent channels for user programmed sequential sampling.

Specifications

Dimensions

270 mm × 80 mm × 80 mm

Weight

<850 grams

Compatible Sample Medium

TenaxGR adsorbent tubes

Flow rate range

0.2 LPM – 0.4 LPM

Battery Life

> 36 hours

Battery Charging Time

< 6 hours

Battery Type

Li-Ion

Channel Switching Time

< 2 seconds

Date Storage

16G SD card on board storage

Date Communication

USB direct reading with Sapiens console software

Download Spec Sheet

Connectivity

Seamless IoT integration

Our solutions enable effortless connectivity across diverse devices and platforms, unifying sensors, systems, and applications into a cohesive smart ecosystem SEIN platform. With cross-protocol compatibility and real-time data synchronization, we empower businesses to streamline operations, enhance decision-making, and scale innovations securely—all through a single, intuitive interface.

Power Packs

The Sapiens PES series can use internal battery which can last up to 36 hours. The internal battery can be charged by connecting a 5V 3A power source.
