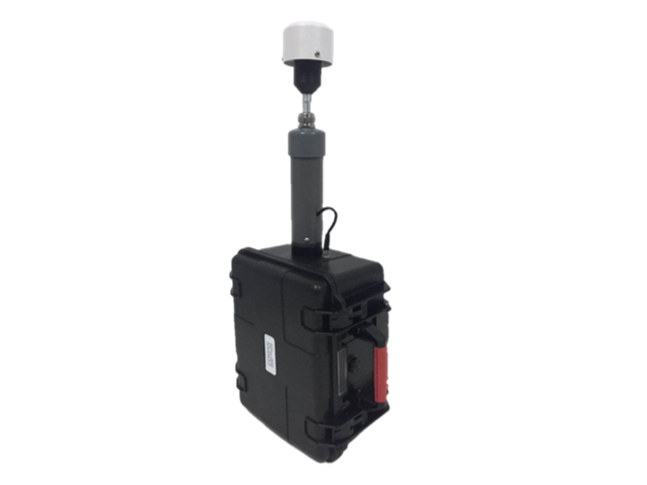

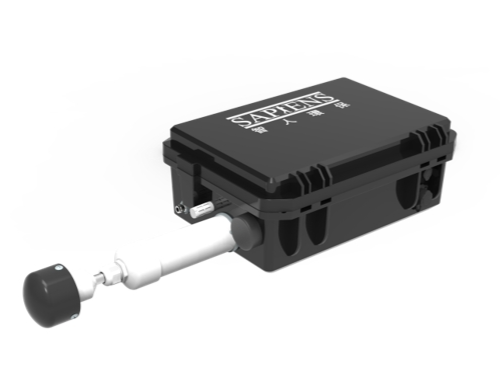

PAS-PM
The PAS-PM dust particle counter adopts the principle of laser scattering, based on Mie scattering theory. The PAS-PM has a high performance particle counter which can measure up to 52 size channels of particulate matters with simultaneous output on PM₁, PM₂.₅ and PM₁₀ mass concentration and near reference data quality under all weather conditions. It is a perfect addition to any cleanroom or controlled environment monitoring application. Furthermore, the smart heater module is included to remove the moisture from PM that may affect the concentration measurements for outdoor applications.
  • Portability: Compact, suitcase-sized design enables easy transport and deployment across diverse microenvironments.

  • Extended Onboard Power: Integrated lithium battery supports up to 12 hours of continuous operation without external power, meeting demands for both outdoor deployment and indoor monitoring.

  • Optional Smart Battery Pack: Expandable runtime up to two weeks with an external, intelligent battery pack

  • Product Detail
    High performance Portable Dust Particle Counter for both indoor and outdoor applications
    Engineered to redefine portable air monitoring, the PAS-PM delivers unwavering data integrity precisely where insights matter most. It can be deployable in minutes across urban microenvironments, indoor spaces, or remote sites without sacrificing accuracy. It is actionable, compliance-ready intelligence wherever air quality impacts health or operations – no compromises, no boundaries.
    Certification
    As an ISO 9001 and ISO 14001 certified company, we are committed to technological excellence and sustainability.
    Features and advantages
    Waterproof Design
    IP65 waterproof design, suitable for various outdoor environments, modular for easy maintenance.
    Dynamic Baseline
    Proprietary technology, real-time baseline tracking, eliminates temperature and humidity effects.
    Humidity Correction
    Built-in high-performance sensors ensure accurate particle concentration measurements.
    Flexible Customization
    Supports customization of multiple gas measurements with fast response and ppb-level accuracy.
    Portability
    Compact, suitcase-sized design enables easy transport and deployment across diverse microenvironments.
    Data Transmission
    4G network data transmission, cloud platform supports real-time monitoring and remote calibration.
    Cloud Analysis
    Cloud storage and intelligent platform for easy access and in-depth data analysis.
    Extended Battery Life
    External battery pack extends outdoor operation time up to two weeks.
    Specifications
  • Dimension
    370 mm (H) x 270 mm (W) x 150 mm(D)
  • Weight
    5 kg
  • Environmental Operating Range
    Temperature: -10-40°C; Humidity: 5-90 %; Pressure: 80kPa~120kPa
  • Power Input
    Standard: 220V AC, 50Hz or 15 ~ 22V External DC Input Optional: External Smart Battery Packs, Solar Power Panel
  • Power Consumption
    Normal @ 15W, Max @ 25 W
  • Data Management
    Sapiens Environment IoT Network (SEIN) network for remote data browsing, downloading, system condition checking and control, and data management

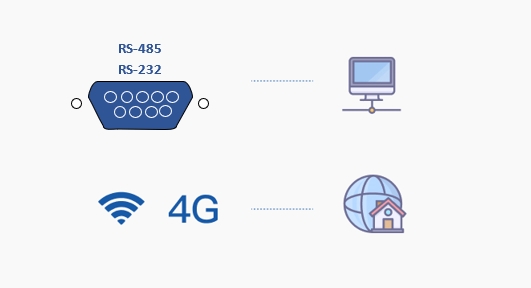

  • Data Communication
    4G module communication for data transmission to cloud platform; RS485/232 communication for Sapiens Console software with data streaming and system configuration
  • Data Storage
    Standard 16G SD card for data storage
  • PM Sampling
    Active sampling with long life pump and heated inleat
  • Sampling Rate
    1 minute
  • Averaging Interval
    1 minute, 1hour, 1 day
  • Quality Control System
    Sheath flow control function for PM counter module for long term performance
  • Connectivity
    Seamless IoT Integration
    Our solutions enable effortless connectivity across diverse devices and platforms, unifying sensors, systems, and applications into a cohesive smart ecosystem SEIN platform. With cross-protocol compatibility and real-time data synchronization, we empower businesses to streamline operations, enhance decision-making, and scale innovations securely—all through a single, intuitive interface.

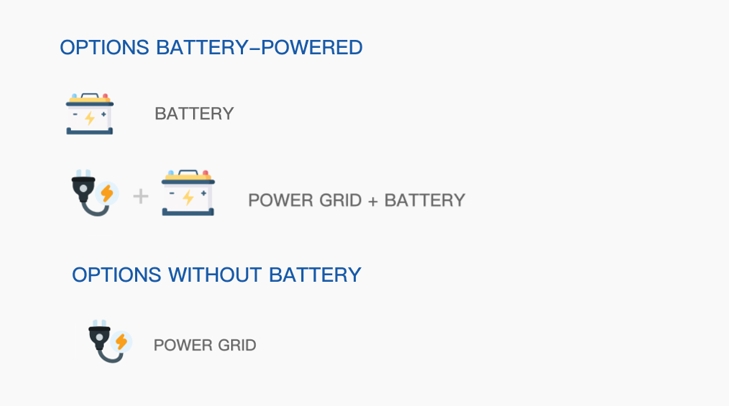

    Power Packs

    The PAS PM has different power options, as per follows:

    • Mains Supply

    • External Smart Battery

    • Mains Supply + External Smart Battery


    Would you like a tailored solution customized to your unique operational environment?
    Customized Service
