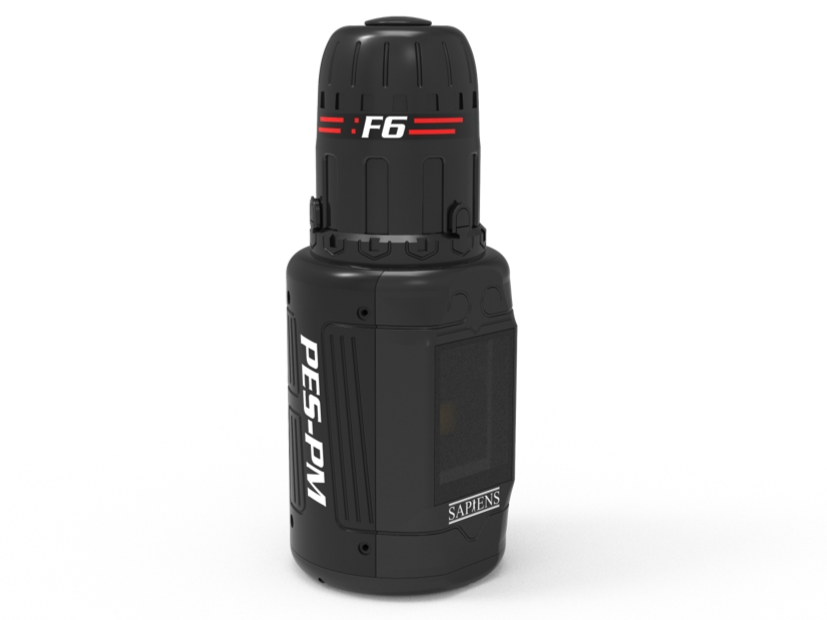

PES-PM F6

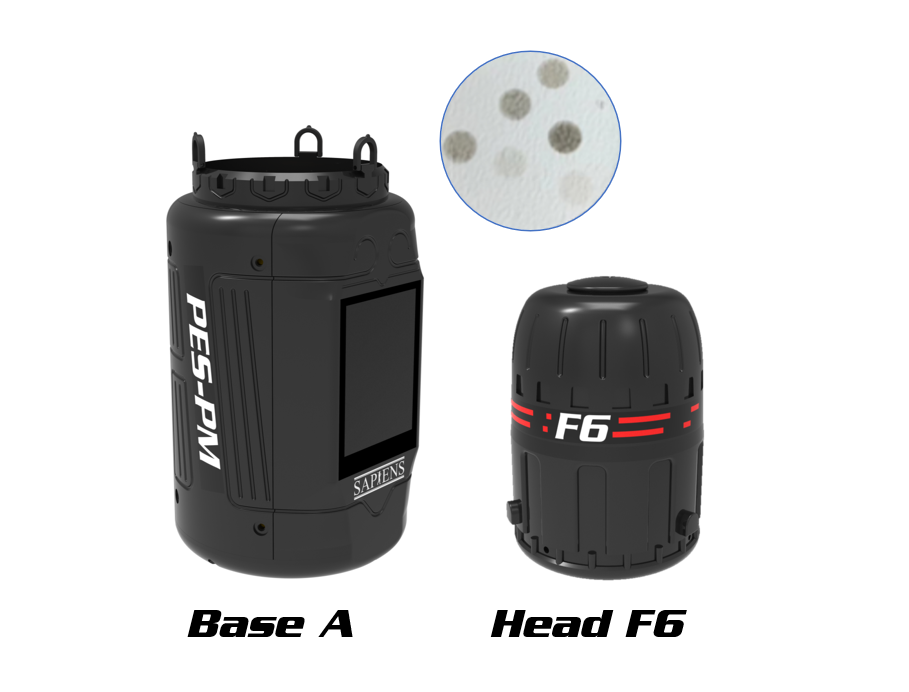

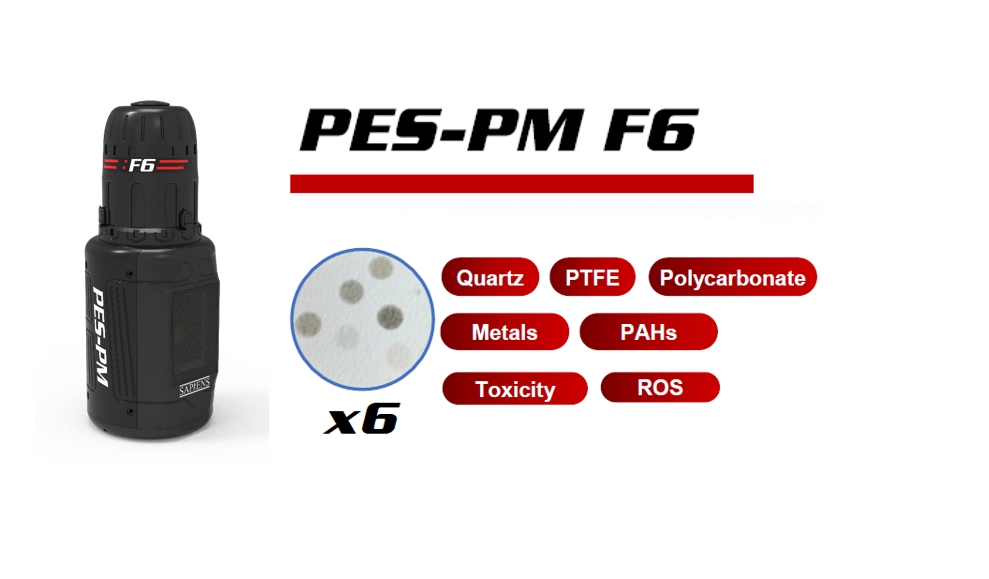

PES-PM F6 is compatible with various 47 mm filter membranes including Teflon, Quartz, and Polycarbonate, employing innovative technology to concentrate particles onto a 6 mm diameter spot. This approach ensures high particle accumulation per unit area and enables multiple samplings on a single filter. Equipped with a micro-impactor for precise PM₂.₅ or PM₁₀ selection, featuring extended battery life with replaceable batteries.
  • High time resolution: High time resolution of integrated sampling from 1h to 24 for each channel.

  • Ultra compact and light weight for portable and personal application.

  • Independent sampling channels: Six independent channels for user programmed sequential sampling

  • Product Detail
    High-time Resolution Portable Air Sampler for Outdoor, Indoor, Personal Exposure and Microenvironment monitoring.
    Our commitment to advanced air quality assessment tools empowers researchers to delve deeper into the complexities of air pollution. With the PES series, you're equipped to capture high-resolution data that not only enhances your understanding of air quality but also drives impactful environmental and health science research. Experience the power of precise sampling and transformative insights with every use.
    Certification
    As an ISO 9001 and ISO 14001 certified company, we are committed to technological excellence and sustainability.
    Features and advantages
    Ultra-Compact
    Compact and lightweight, suitable for various installation methods, flexible and convenient.
    High-resolution
    High time resolution of integrated sampling from 1h to 24 for each channel.
    Visual Display
    Display screen for real-time sampling status visualization.
    Multiple Samples
    Six independent channels for user programmed sequential sampling.
    Specifications
  • Dimensions
    205 mm × 80 mm × 80 mm
  • Weight
    <850 grams
  • Flow rate range
    1.5 LPM – 3 LPM
  • Impactor Cut Point
    PM2.5 at 1.67 LPM with 50% penetration efficiency
  • Channel Switching Time
    < 2 seconds
  • Battery Charging Time
    < 6 hours
  • Date Storage
    16G SD card on board storage
  • Date Communication
    USB direct reading with Sapiens console software
  • Compatible Sample Medium
    47 mm (Teflon, Quartz, and Polycarbonate)
  • Battery Life
    > 30 hours
  • Connectivity
    Seamless IoT integration
    Our solutions enable effortless connectivity across diverse devices and platforms, unifying sensors, systems, and applications into a cohesive smart ecosystem SEIN platform. With cross-protocol compatibility and real-time data synchronization, we empower businesses to streamline operations, enhance decision-making, and scale innovations securely—all through a single, intuitive interface.
    Power Packs

    The Sapiens PES series can use internal battery which can last up to 36 hours. The internal battery can be charged by connecting a 5V 3A power source.


    Would you like a tailored solution customized to your unique operational environment?
    Customized Service
