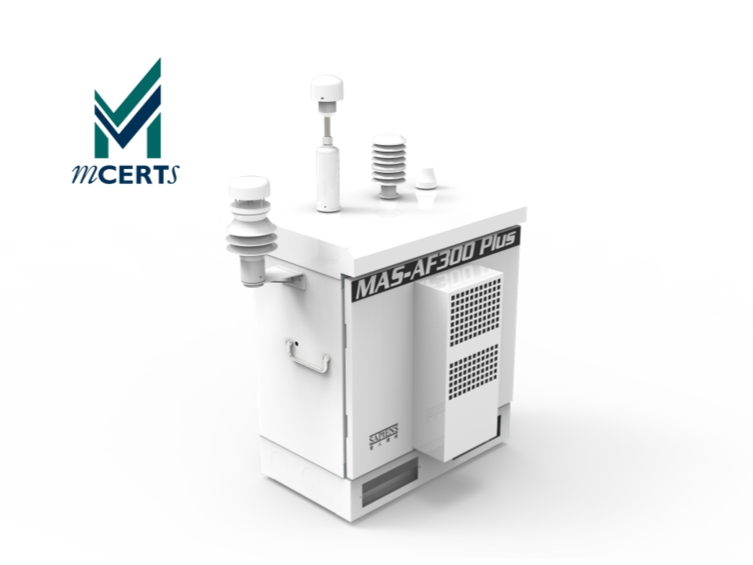

MAS AF300 Plus

Uniquely equipped with self-regulating temperature and humidity controls, ensuring data accuracy even in rapidly changing and extreme environments. MAS AF300 Plus is ideal for diverse applications and different weather conditions, delivering reliable air quality data.

Temperature and humidity stabilization technology to eliminate environmental interference and maintain optimal sensor performance

Patented dynamic sensor tracking technology ensuring data quality

Multi-pollutant mastery for comprehensive air quality analysis

Product Detail

Adaptive. Precise. Reliable - Unwavering air quality insights, no matter the environment.

Uniquely designed for air quality monitoring in extreme environments, its proprietary technology stabilizes humidity and adapts to abrupt changes, ensuring accuracy even in extremely challenging scenarios.

Certification

As an ISO 9001 and ISO 14001 certified company, we are committed to technological excellence and sustainability.

PM₁ PM₂.₅ PM₁₀ TSP NO₂ O₃ CO SO₂ NO CO₂ Relative Humidity Temperature Pressure Wind Direction Wind Speed

Features and advantages

Waterproof Design

IP65 waterproof design, suitable for various outdoor environments, modular for easy maintenance.

Temperature regulation technology

Designated to automatically stabilise the internal environment of the monitoring station to compensate for abrupt fluctuations in ambient temperature.

Dynamic Baseline

Proprietary technology, real-time baseline tracking, eliminates temperature and humidity effects.

Auto-Zero Function

Optional auto-zero module for automatic correction of sensor drift errors.

Humidity Correction

Built-in high-performance sensors ensure accurate particle concentration measurements.

Data Transmission

4G network data transmission, cloud platform supports real-time monitoring and remote calibration.

Cloud Analysis

Cloud storage and intelligent platform for easy access and in-depth data analysis

Remote calibration

The Sapiens SEIN platform offers a calibration function, which is a powerful and unique tool for quality control and assurance

Specifications

Dimension

800 mm (H) x 480 mm (W) x 550 mm (L)

Weight

≤55kg

Environmental Operating Range

Temperature: -40-60°C; Humidity: 5-90 %; Pressure: 60kPa~120kPa

Installation Options

Stationary / OEM integration

Ingress Protection

IP65 with optional metal shield for UV protection and sun exposure

Power Input

220 V Alternating Current(AC) / 24 V Direct Current(DC) input

Power Consumption

380 W under normal working condition

Data Management

Sapiens Environment IoT Network (SEIN) network for remote data browsing, downloading, system condition checking and control, and data management

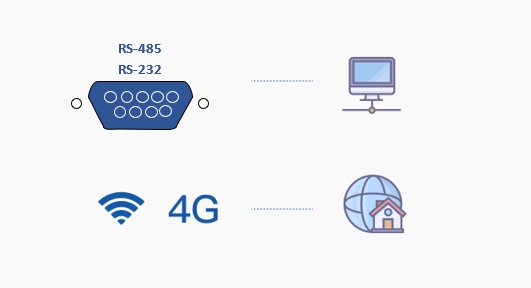

Data Communication

1) 4G module communication for data transmission to the cloud platform The 4G antenna can be extended for attachment to the external structure.
2) The RS485 communication interface ensures stable data transmission.

Data Storage

Standard 16G SD card for data storage

Gas Sampling

Active sampling with long life pump

PM Sampling

Active sampling with long life pump and heated inlet

Sampling Rate

1 minute

Averaging Interval

1 minute, 1hour, 1 day

Quality Control System

• Auto-Zero Function for Gas modules that correct long-term drift errors, ensuring consistent accuracy.
• Proprietary dynamic pair differential filter technology for correction on gas sensor signals
• Humidity stabilization function for the gas module to control the
• PM module with intelligent heater for humidity correction

Download Spec Sheet

Connectivity

Seamless IoT Integration

Our solutions enable effortless connectivity across diverse devices and platforms, unifying sensors, systems, and applications into a cohesive smart ecosystem SEIN platform. With cross-protocol compatibility and real-time data synchronization, we empower businesses to streamline operations, enhance decision-making, and scale innovations securely—all through a single, intuitive interface.

Power Packs

MAS AF300 Plus has different power options, as per follows:

• Mains Supply

• External Smart Battery
• Mains Supply + External Smart Battery

Case Studies

Explore all case

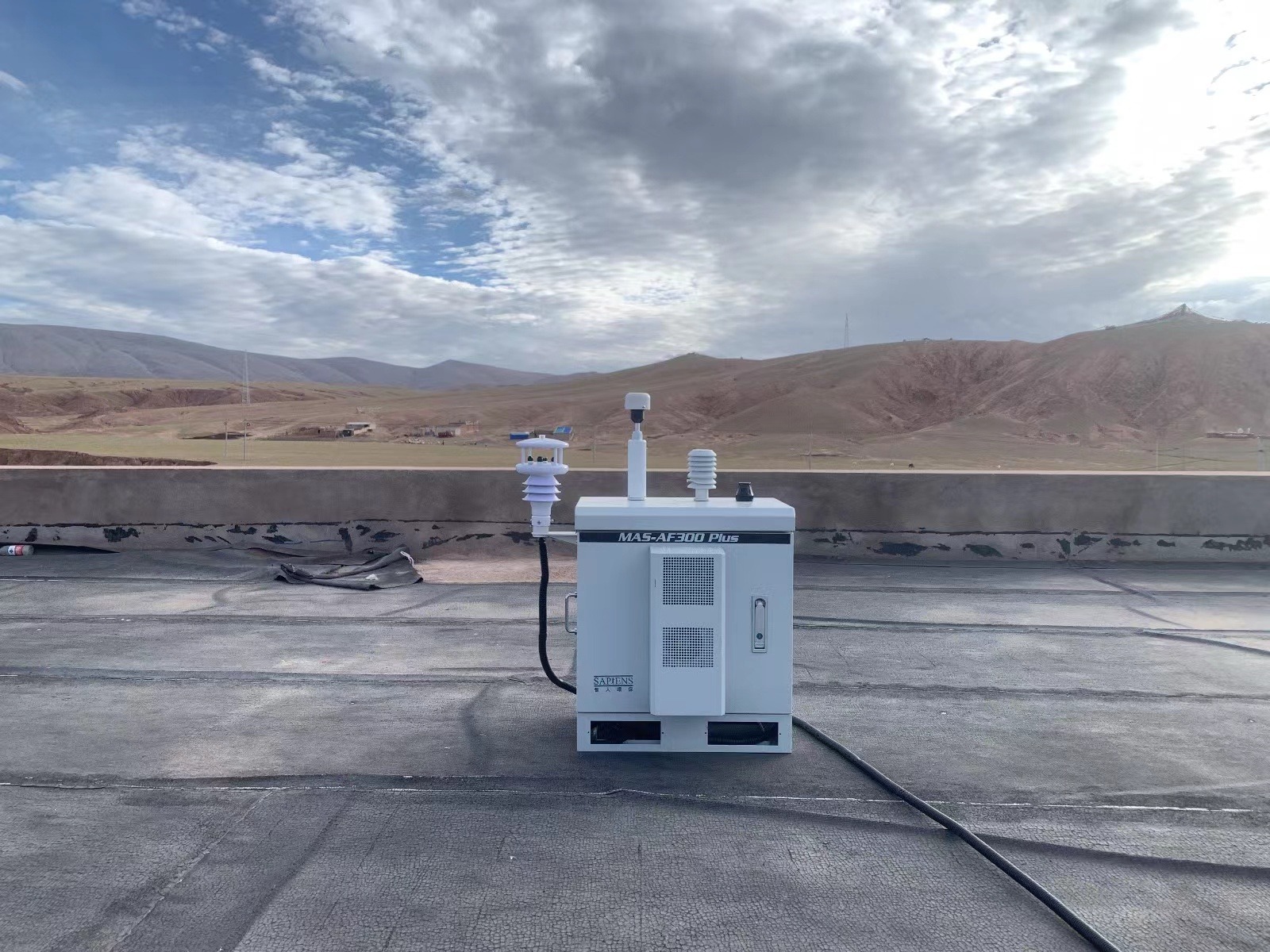

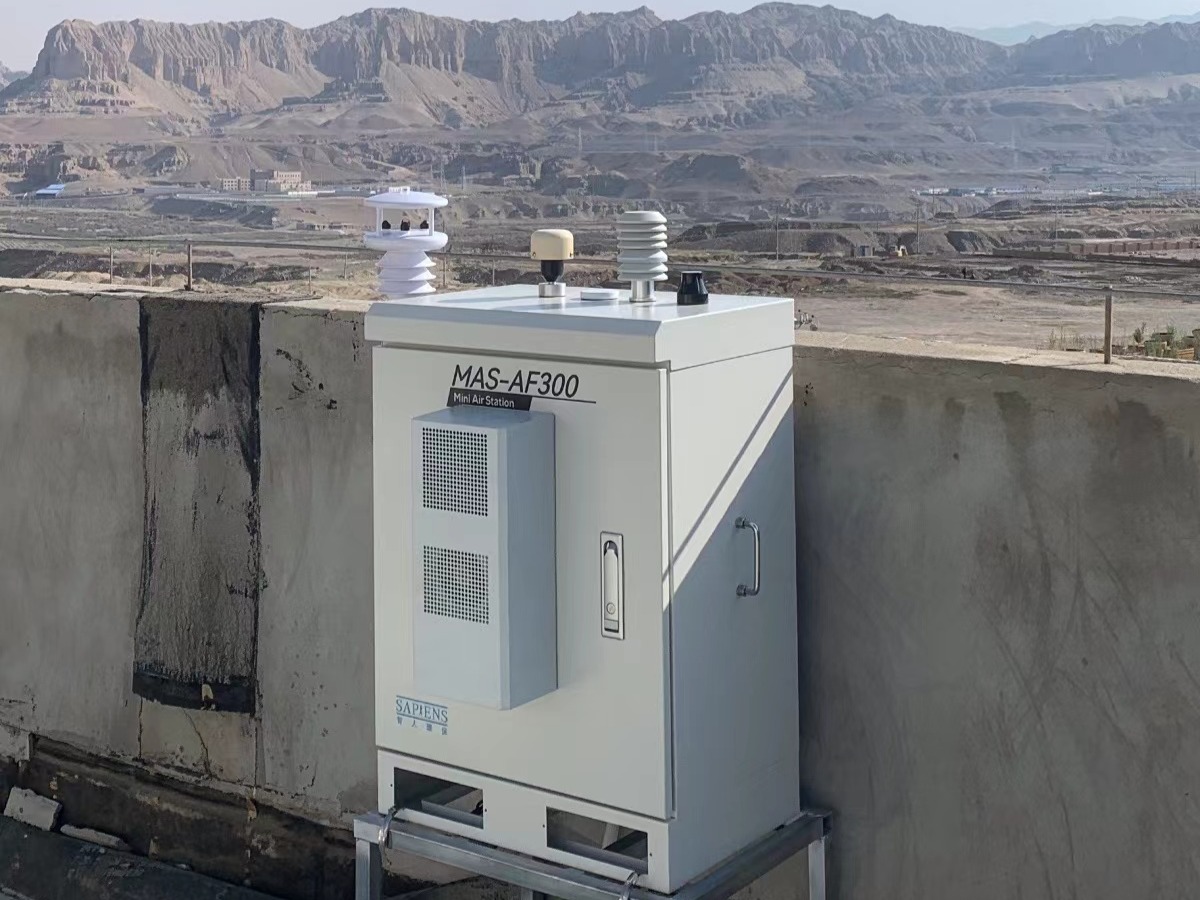

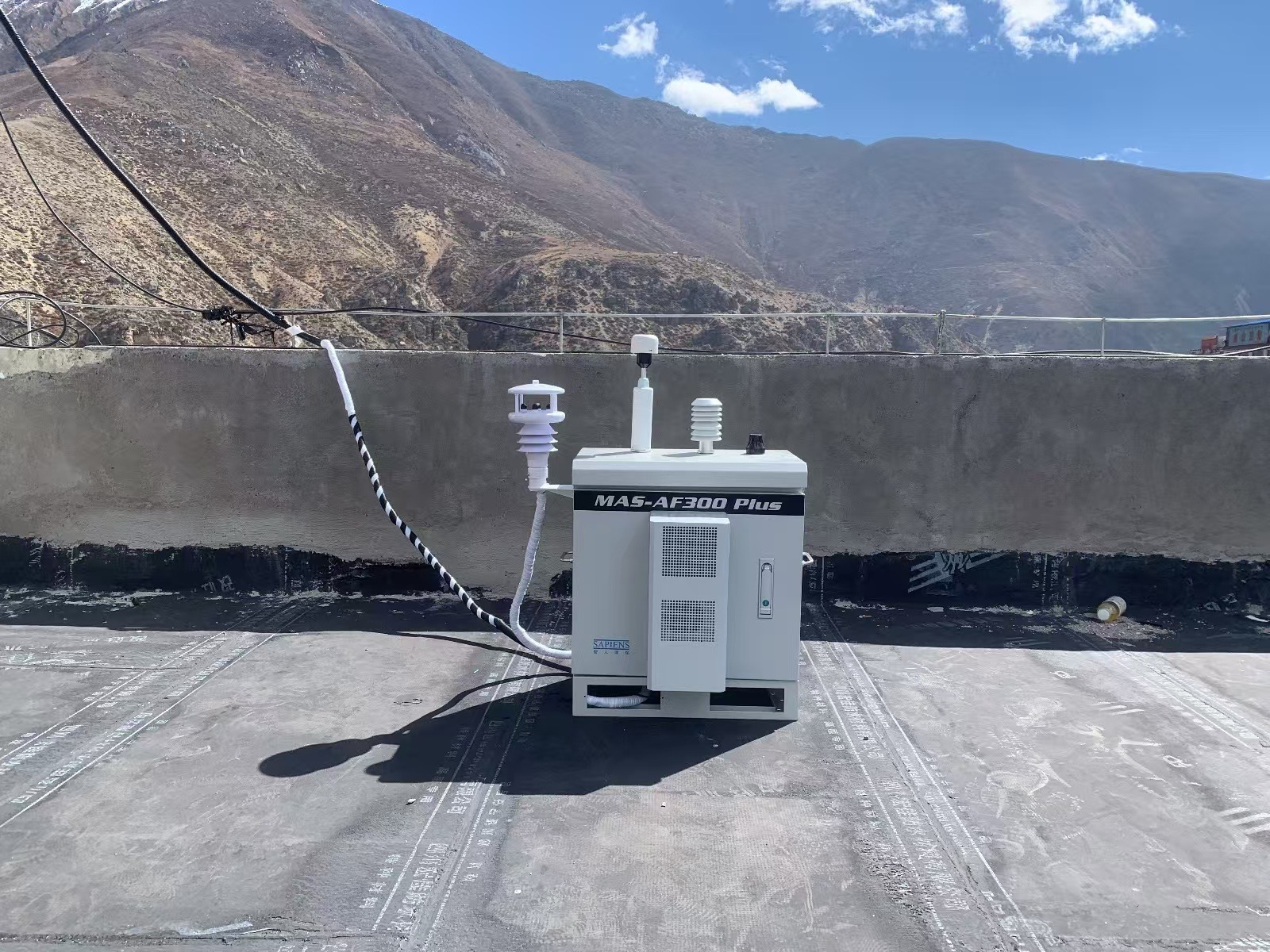

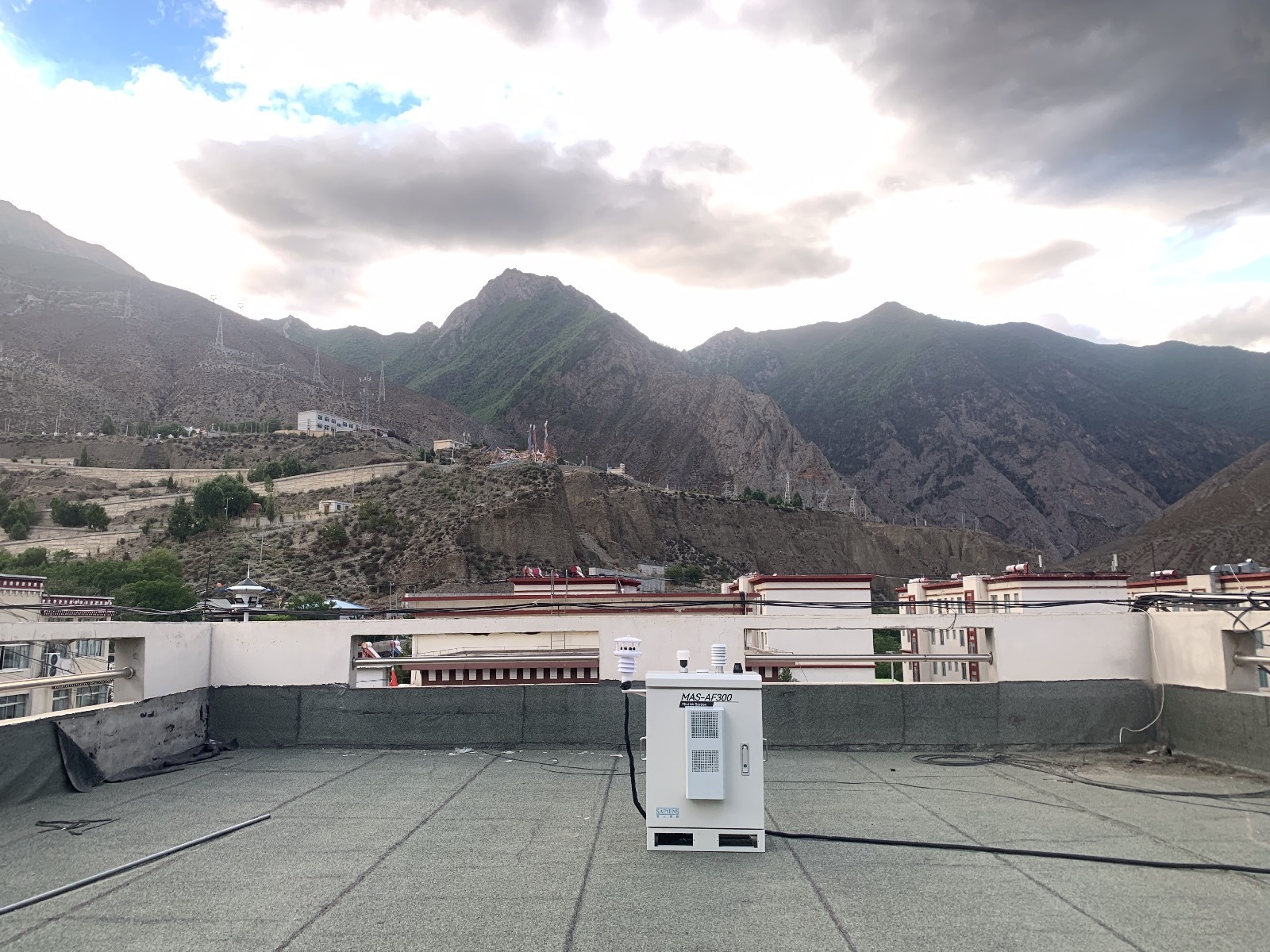

Investigating the Causes of Excessive Ozone Level in Tibet

Sector：Harsh Environments

Location：Tibet, China

In recent years, Tibet faced a significant challenge from excessive ozone pollution. After calibrating the local national monitoring stations, the Shanghai Environmental Monitoring Center collaborated with the Tibet Environmental Monitoring Station to deploy a network of advanced micro air monitoring stations MAS Odour Plus from Sapiens. These stations provided comprehensive real-time data on a range of key pollutants, including PM2.5 PM10, SO2, NO NO2, O3, and TVOC. By analyzing the monitoring data, the team was able to establish a preliminary understanding of the connections between local oz
